Bundling method for pigtails

Bundling pigtails effectively requires careful preparation, proper tools, and organized splicing to ensure secure, reliable, and long-lasting connections.

Electrical Pigtails

Preparation and Safety: Always cut power at the breaker and verify with a non-contact voltage tester before handling wires. Identify ground conductors (green or yellow) and label wires for clarity . Stripping and Twisting: Use precision wire strippers to remove about ½ inch of insulation without nicking the copper. Align stripped ends neatly and twist them together using quality linesman pliers to form a tight bundle . Securing Connections: Use color-coded wire nuts to cap the twisted bundle, ensuring mechanical strength and preventing corrosion. Keep scrap wire handy for custom connectors and store materials in labeled containers for organization . Best Practices: Consistent preparation and neat alignment improve current flow and reduce heat buildup. Properly bundled pigtails isolate issues, protect downstream circuits, and simplify future maintenance .

Fiber Optic Pigtails

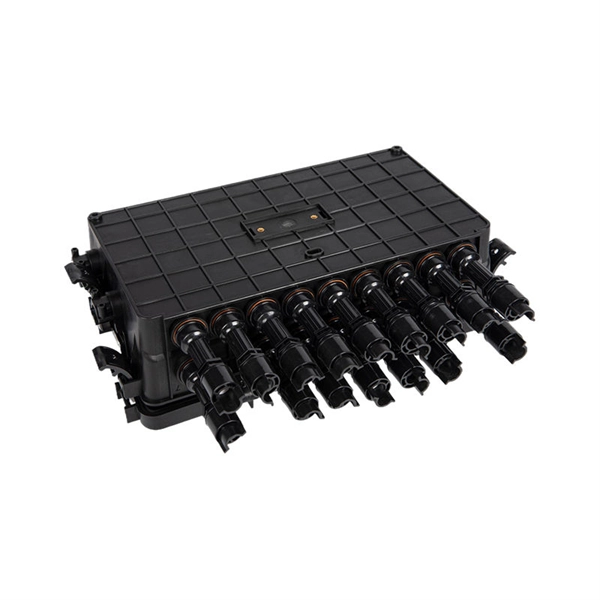

Understanding Pigtails: A fiber optic pigtail has a factory-terminated connector on one end and bare fiber on the other. The bare end is spliced to the main fiber, while the connector plugs into equipment or patch panels . Tools and Preparation: Use a fusion splicer, fiber strippers, high-precision cleaver, and lint-free cleaning supplies with 99% isopropyl alcohol. Remove the outer coating carefully, clean the fiber, and make precise cuts for optimal splicing . Splicing and Bundling: Align the bare fiber with the main cable and perform a fusion splice. Apply a heat-shrink sleeve for durability. Organize multiple pigtails neatly in splice trays or enclosures to prevent bending or stress on the fibers . Testing and Verification: Use an OTDR or power meter to confirm low signal loss and proper performance. Pre-tested, high-quality pigtails reduce installation errors and improve long-term network reliability .

General Tips

• Labeling: Clearly mark each pigtail to avoid confusion in multi-strand bundles.
• Organization: Use trays, ties, or channels to keep bundles neat and prevent tangling.
• Quality Materials: Invest in factory-terminated pigtails and professional-grade tools to minimize errors.
• Consistency: Maintain uniform lengths and alignment for both electrical and fiber pigtails to ensure optimal performance and safety. By following these steps, you can create secure, organized, and reliable pigtail bundles whether working with electrical wiring or fiber optic networks, reducing maintenance issues and improving overall system performance.
